Foundation Waterproofing & Structural Repair
Permanent foundation systems from footing to grade.
Heritstone does waterproofing the structural way: full-depth excavation, reinforced repairs, elastomeric membranes, dimple board, stone backfill and footing drains that actually discharge.
Call or Email Photos: 440-448-5057This is a landline. Please call with questions and email photos to contact@heritstone.com.

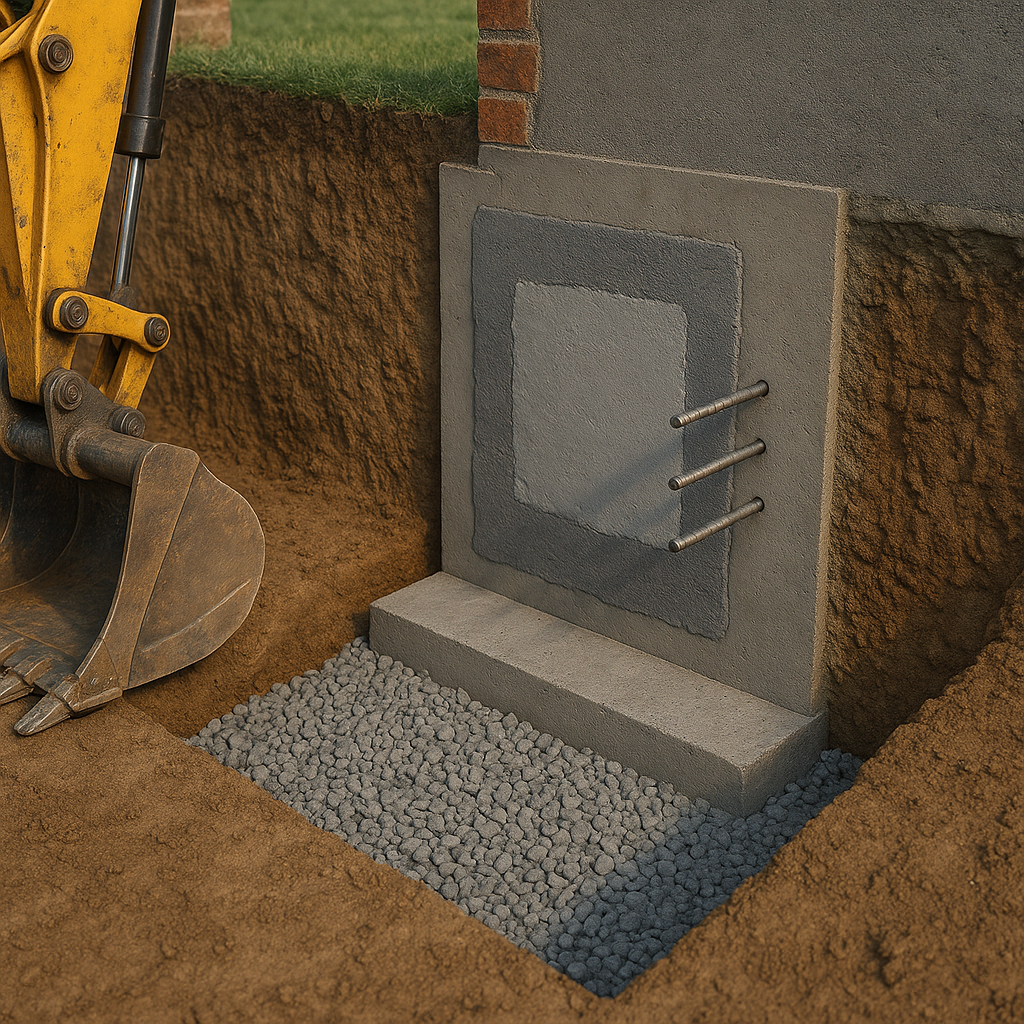

Our structural waterproofing sequence.
A correct system is built in layers. Every step matters.
1. Controlled excavation
- 5–8 ft depth to expose wall and footing.
- Excavated in safe staged sections.
- Prevents undermining of footings.
2. Wall cleaning & assessment
- Pressure-wash, scrape and clean concrete or block.
- Identify structural problems before covering.
3. Structural repairs
- Reinforced concrete pours where walls are failing.
- Steel, dowels and proper tie-ins.
- Full wall replacement when needed.
4. Waterproofing membrane
- 60–90 mil elastomeric membrane.
- Self-healing & monolithic.
5. Dimple board
- Protects membrane.
- Creates drainage plane.
6. Footing drains
- 4" perforated pipe at footing elevation.
- #57 clean stone envelope.
- Geotextile wrap.
7. Stone backfill
- 24–36" of #57 stone up the wall.
- Final soil grading away from home.
